KILOVIEW DECODERS

Founded in 2010, Kiloview is a professional hardware manufacturer, software developer and solution provider in the field of IP-based video transmission and management, with products across the range of video encoding, decoding, conversion, IP-based video switching and streaming.

Kiloview provides high quality and reliability video transmitting products, helping thousands of professional customers in Broadcast, Sports, Education, Medical, Security and Enterprise supporting a wide range of protocols including NDI, NDI|HX, SRT and RTMP.

REQUEST A DEMO NOW

Video Decoder Series Comparison Table

Model Number D300 DC230 DC220
Network 2*1000M RJ45 Ethernet 1*1000M RJ45 Ethernet 1*1000M RJ45 Ethernet
Video Output 1*3G-SDI & 1*HDMI 1*3G-SDI & 1*DVI-1-I 1*3G-SDI & 1*DVI-1-I
Resolution HDMI: 4K, SDI: 1080P60 1080P60 1080P60 (1080i59.94 not supported)
Audio output Embedded SDI/HDMI audio, 3.5mm analog audio Embedded SDI/HDMI audio, 3.5mm analog audio Embedded SDI/HDMI audio, 3.5mm analog audio
Input Media Protocols NDI HX/SRT/TS over UDP/ RTMP/HLS/RTP/ RTSP etc SRT/TS over/UDP/ RTMP/HLS/RTP/RTSP etc SRT/TS over/UDP/ RTMP/HLS/RTP/RTSP etc
Video Decoding H.265/H.264 H.264 H.264
Audio Decoding ACC/G.711 ACC/G.711 ACC/G.711
Decoding latency <200ms adjustable <200ms adjustable <200ms adjustable
Decoding ability Up to 9CH (1080P60: 8CH; 4KP30: 4CH) <4CH 1080P60 1CH 1080P60
Split Screen Self defined splitting within 9 images Self defined splitting within 4 images /

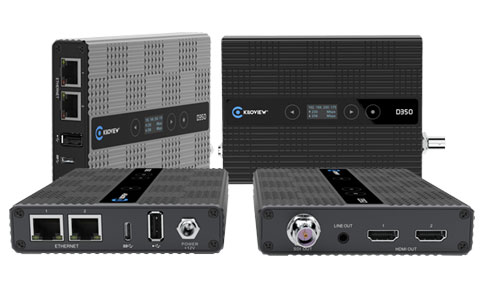

Kiloview D350 decoder

D350 4K HDMI HARDWARE DECODER

The Kiloview D350 is a professional hardware decoding device that can simultaneously decode up to 9 network video streams and then output them through both 3G-SDI and HDMI interfaces, with up to 4Kp60 output resolution. The D350 supports H.265, H.264 and all NDI decoding protocols.

With a built-in LCD screen, users can monitor the IP status and decoding parameters in real-time.

The D350 allows dynamic switching, background/logo overlay, custom split display of a video stream, and other features.

Dimensions: 140 x 105 x 28 mm
Weight: 380 g

Kiloview Decoders

DC230 IP to SDI/HDMI/VGA VIDEO DECODER

Decoding streams from any encoder (based on RTSP, RTMP, RTP, unicast and multicast); Compatible with hundreds of encoding products, streaming servers, web cameras, etc.

Output interface can be SDI, DVI, HDMI/DVI and VGA, full resolutions (including self-defined resolution) supported;

Output analog audio, SDI and HDMI embedded audio simultaneously.

Kiloview decoders

KILOVIEW D300 4K UHD NDI HX VIDEO DECODER

The D300-4K UHD NDI HX Video decoder is a professional hardware device that can decode multiple video streams. It outputs SDI and HDMI video, supports 4K UHD resolution, multi-channel video stream split screen and dynamic switching.

A powerful decoder, the D300 supports 4K NDI HX and H.265 decoding.

New firmware features include the ability to preview 16 channels of real-time decoded video streams on its web interface, from which you can output 9 channels simultaneously.

With dual SDI and HDMI interfaces, the D300 can output HDMI up to 3840x2160@60Hz and SDI up to 1920x1080@60Hz with adjustable resolution.

READ MORE
  • NDI HX, H.265, H.264 decoding, supports 9 channels 1080p30, or 4 channels 4k HD video simultaneous decoding output.
  • SRT supported
  • HDMI and SDI dual interface output, support HDMI (up to 3840x2160@60Hz) and SDI (up to 1920x1080@60Hz) same or different content output.
  • Using Kiloview's intelligent delay control technology, the typical network environment is less than 200ms decoding delay.
  • With video stream dynamic switching function, it supports multi-screen custom split screen display
  • User defined 1/2/4/6/8/9 split display.
  • Audio mix output.
  • Tally display and column indication.
  • High compatibility, compatible with various types of network video decoding output, suitable for a wide range of video stream dynamic switching functions, support multi-screen custom split screen display
  • The input supports mainstream network video protocols such as RTMP/HLS/TS over UDP/RTP/RTSP, and supports protocols such as SIP and VOCP. Compatible with hundreds of front-end encoding products, streaming media servers, network cameras, etc.
  • HDMI/SDI embedded audio output and analog audio output.
Kiloview decoders

DC220 IP NETWORK VIDEO DECODER

The Kiloview DC220 IP Network Video Decoder is a multi functional decoding device suitable for stream decoding / receiving and monitoring.

Decoding streams from any encoder (based on RTSP, RTMP, RTP, unicast and multicast)

Compatible with hundreds of encoding products, streaming servers, web cameras, etc.

Output interface can be SDI, DVI, HDMI/DVI and VGA, full resolutions (including self-defined resolution) supported.

Output analog audio, SDI and HDMI embedded audio simultaneously.

Kiloview decoders
